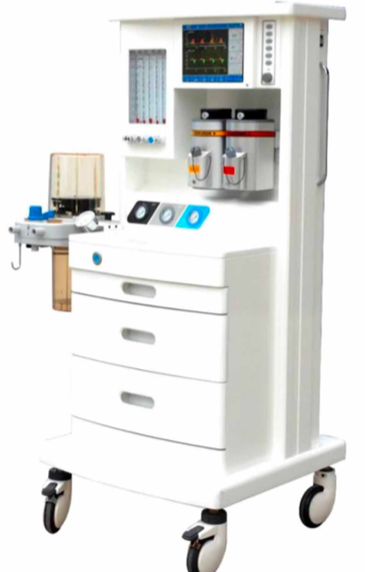

Anesthesia Machine

SECURITY ALARM SYSTEM
Oxygen Concentration Alarm Upper limit setting range 21%–99%;
Low limit setting range 18%–80%
Airway Pressure Alarm Upper limit setting range 5–60cmH₂O;
Low limit setting range 0–50cmH₂O.
Minute Ventilation Volume Alarm Upper limit setting range 1–20L/min;
Low limit setting range 0–19L/min.
Respiratory Rate Upper limit setting range 10–99bPm
Low limit setting range 0–50bPm
Tidal Volume Upper limit setting range 10–1500ml
Low limit setting range 0–1400ml
Sustained High-pressure Alarm It will give alarm when stress have consistently been higher than 25 cmHâ‚‚O
Suffocation Alarm Power alarm, Battery voltage alarm, Intubation off alarm
Power AC 220V, 50Hz, UPS, Storage battery
Manipulators
(End-expiratory CO2 monitoring)
(Specific interface of waste anesthesia gas)
*Note: Items within brackets are optional.



PARAMETER SPECIFICATION
Main Body High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of Application Adult, child
Gas Source O₂, N₂O, Air: 0.28–0.6MPa.
Flow Meter

O₂: 0.05–1.0L/min; 1.1–10L/min


N₂O: 0.05–1.0L/min; 1.1–10L/min


Air: 0.05–10L/min
Oâ‚‚, Nâ‚‚O Linkage and Nâ‚‚O Stopper

When using nitrous oxide, oxygen concentration > 25%;


When the oxygen pressure < 0.2MPa, the flow of nitrous oxide would be cut off.
Rapid Oxygen Flow 25–75L/min
Low Oxygen Pressure Alarm There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer

It has the function of automatic compensation based on pressure, temperature, and flow rate.


The regulation range of evaporator concentration is 0–5vol%.




Among Halothane, Enflurane, Isoflurane and Sevoflurane, two can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.


Respiratory Circuit

Working mode: all-close, semi-close, semi-open;




APL: ≤12.5kPa
Be the first to review “Anesthesia Machine”

Your email address will not be published. Required fields are marked *

There are no reviews yet.

Be the first to review “Anesthesia Machine”

Recently Viewed

  • Wishlist

    Compare

    Add to cart
    ,

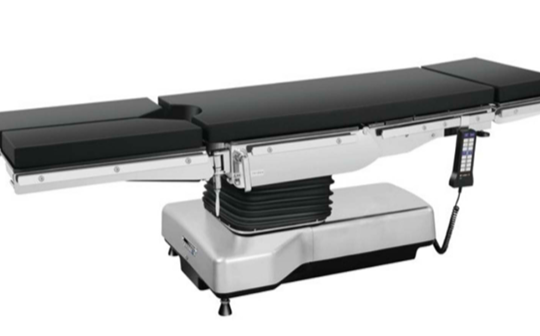

    Operating Table
