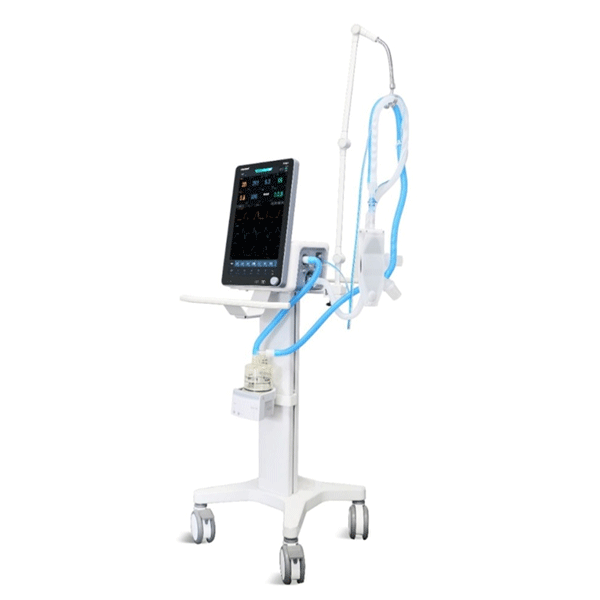

Specifications
| PARAMETER |
SPECIFICATION |
| Gas Supply |
| Gas Supply |
Medical-grade Oxygen |
| Pipe Connector |
NIST or DISS |
| Gas Supply Pressure |
280~600kPa |
| Display |
| Display Size |
18.5 inch-TFT Touch Screen |
| Display Resolution (H)*(V) |
1080*1920 pixeles |
| Brightness |
Adjustable |
| Communication Interface |
| Communication Interface |
Standard: HDMI, RS232, USB, Nurse Call
Optional: CO2Â Module, SPO2Â Module |
| Power & Battery Backup |
| AC Power Supply Input Voltage |
100~240V |
| Input Frequency |
50/60Hz |
| Input Current |
2.5A Max |
| Fuse |
T3.15AH/250V |
| Number of Batteries |
One or Two (Two Batteries is Optional) |
| Battery Type |
Built-in Lithium-ion Battery, 14.4VDC, 6900mAh |
| Battery Running Time |
3 hours (1pc Battery), 6 hours (2pcs Battery) |
| Value Added Functions |
| 100% O2
Suction
Nebulization
Manual Breath
Inspiratory Hold
Expiratory Hold
PEEPi
P0.1
NIF
PV Aid
Dynamic Lung
Automatic servo heated humidifier with alarms
ETCOâ‚‚ with sensor cable |
| Note: Flow Sensor is Disposable |
Ventilation Parameters
| PARAMETER |
SPECIFICATION |
| Patient Type |
Adult, Pediatric, Neonatal |
| Invasive Ventilation Mode |
– VCV (Volume Control Ventilation)
– PCV (Pressure Control Ventilation)
– VSIMV (Volume Synchronized Intermittent Mandatory Ventilation)
– PSIMV (Pressure Synchronized lntermittent Mandatory Ventilation)
– CPAP/PSV (Continuous Positive Airway Pressure/Pressure Support Ventilation)
– PRVC (Pressure Regulated Volume Control)
– V+SIMV (PRVC+SIMV)
– BPAP (Bilevel Positive Airway Pressure)
– APRV (Airway Pressure Release Ventilation)
– Apnea Ventilation
– AMV |
| Non-invasive Ventilation Mode |
– PCV (Pressure Control Ventilator)
– nCPAP (Nasal Continuous Positive Airway Pressure)
– PPS (Proportional Pressure Support)
– S/T (Spontanous and Timed)
-VS (Volume Support) |
| Apnea Ventilation |
| VT-apnea |
Adult: 10~2000mL
Pediatric: 20~300mL
Neonatal: 2~300mL |
| â–³P-apnea |
5~60cmH2O |
| f-apnea |
1~80/min |
| Apnea T-insp. |
0.2~10s |
| Sigh |
| Sigh Switch |
On, Off |
| Interval |
20s~180min |
| Cycles Sigh |
1~20 |
| â–³int. PEEP |
0~45 cmH2O, Off |
| O2 Therapy |
O2 |
Flow |
| Controlled Parameters |
21~100% (Increments of 1%) |
4~80L/min |
| Controlled Accuracy |
±(3vol.%+1% of Setting) |
±(2L/min+10% of Setting) (BTPS) |
Controlled Parameters
| SPECIFICATION |
ADULT, PEDIATRIC |
NEONATAL |
| O2% |
21~100% |
21~100% |
| VT (Tidal Volume) |
100~2000mL (Adult)
20~300mL (Pediatric) |
2~300mL |
| f |
1~80/min |
1~150/min |
| f-SIMV |
1~80/min |
1~150/min |
| I:E |
1:10~4:1 |
1:10~4:1 |
| T-insp. |
0.2~10s |
0.2~10s |
| T-slope |
0~2s |
0~0.6s |
| T-high |
0.2~30s |
0.2~30s |
| T-low |
0.2~30s |
0.2~30s |
| T-pause |
5%~60%, Off |
5%~60%, Off |
| â–³P-insp. |
5~80cmH2O |
3~60cmH2O |
| â–³P-supp. |
0~80cmH2O |
0~45cmH2O |
| P-high |
0~80cmH2O |
0~45cmH2O |
| P-low |
0~45cmH2O |
0~25cmH2O |
| PEEP |
1~45cmH2O, Off |
1~25cmH2O, Off |
| Flow Trigger |
0.5~15L/min |
0.1~5L/min |
| Pressure Trigger |
-10~(-0.5) cmH2O |
/ |
| Exp% |
10~85%, Auto |
10~85%, Auto |
| CPAP |
4~25cmH2O |
/ |
| EPAP |
2~40cmH2O |
/ |
| IPAP |
2~30cmH2O |
/ |
| Rise Time |
1~5 |
/ |
| Ramp Time |
5~45min, Off |
/ |
| P-min (VS minimum IPAP) |
5~30cmH2O |
/ |
| P-max (VS maximum IPAP) |
6~40cmH2O |
/ |
| P-max (PPV maximum pressure limit) |
5~40cmH2O |
/ |
| V-max (PPV maximum volume limit) |
200~3500mL |
/ |
| E-max |
0~100cmH2O |
/ |
| R-max |
0~50cmH2O |
/ |
| PPV% |
0~100% |
/ |
Synchronized Tube Resistance Compliance
| PARAMETER |
SPECIFICATION |
| Tube Type |
ET Tube, Trach Tube, Disable STRC |
| Tube I.D. |
Adult: 5.0~12.0mm
Pediatric: 2.5~8.0mm |
| Compensate |
0~100% |
| Expiration Compensation Switch |
On, Off |
Monitored Parameters
| Numeric |
| Paw |
Vte |
C-dyn. |
| P-peak |
VTi |
C-stat. |
| P-plat. |
VTe-spn. |
RC-exp. |
| P-mean |
VTe/IBW |
WOB |
| PEEP |
FiO2 |
RSBI |
| PIP |
f |
Pt.-trig |
| EPAP |
f-total |
Pt.-leak |
| MV |
I:E |
Tot.-leak |
| MV-leak |
RE |
Continuous Flow (O2Â Therapy)
Built-in turbine |
| MV-spn. |
Ri |
|
| Real Time Graphics |
| Pressure-time Waveform |
Pressure-volume Loop |
| Flow-time Waveform |
Flow-time Loop |
| Volume-time Waveform |
Pressure-flow Loop |
| Trend & Record |
| Type |
Tabular, Graphic |
| Length |
72 hours |
| Content |
Monitor Parameters |
| Max Log |
20000 |
| Screen Capture |
100 |
Alarm Settings
| SPECIFICATION |
TYPE |
ADULT |
PEDIATRIC |
NEONATAL |
| Tidal Volume |
High
Low |
110~4000mL, Off
50~4000mL, Off |
25~600mL, Off
10~600mL, Off |
4~600mL, Off
1~590mL, Off |
| Minute Volume |
High
Low |
0.2~100.0L/min
0.1~50.0L/min |
0.2~60.0L/min
0.1~30.0L/min |
0.12~50.0L/min
0.02~30.0L/min |
| Airway Pressure |
High
Low |
10~65cmH2O
10~63cmH2O, Off |
10~65cmH2O
10~63cmH2O, Off |
10~65cmH2O
10~63cmH2O, Off |
| Frequency |
High
Low |
1~90/min, Off
1~88/min, Off |
1~90/min, Off
1~88/min, Off |
1~160/min, Off
1~158/min, Off |
| O2Â Concentration |
High
Low |
20~100%
18~98% |
20~100%
18~98% |
20~100%
18~98% |
| Apnea Alarm Time |
Low |
5~60s |
5~60s |
5~60s |
Physical Specifications
| PARAMETER |
SPECIFICATION |
| Dimensions (L*W*H) |
310mm*329mm*493mm (main unit)
664mm*600mm*1520mm (with Trolley) |
| Weight |
Approximately 12.0kg (Main Unit), Approximately 33.0kg (with Trolley) |
| Environmental Conditions |
|
OPERATING |
STORAGE AND TRANSPORT |
| Temperature |
5~40℃ |
-20~60℃, O2 Sensor: -20~50℃ |
| Relative Humidity |
10~95% |
10~95% |
| Barometric Pressure |
62~106kPa |
50~106kPa |
|
